Stray Voltage Potential Monitor
Identifies ground wire integrity, stay current, and radio frequency monitoring
Applications
- Monitors wellsite for radio frequency (RF) energy, stray voltage, and the presence of correct ground circuit condition
Features and Benefits
- Single panel capable of monitoring conditions for API RP 67 requirements
Tool Description

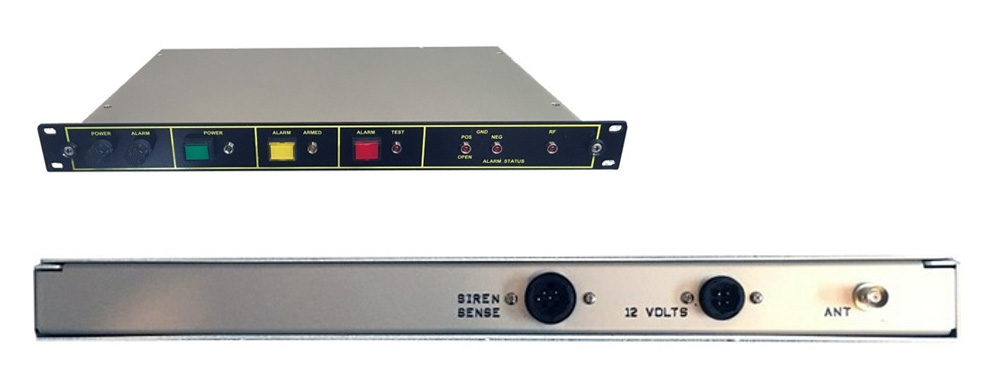

The Weatherford stray voltage potential monitor unit provides the capability to identify ground wire integrity, stay current, and radio frequency monitoring.
Specifications
Dimensions
Length | 9.5 in. (241.3 mm) |
Rack mount width | 19.0 in. (482.6 mm) |
Width | 17.0 in. (431.8 mm) |
Height | 1.75 in. (44.45 mm) |
Operating temperature | 14.0 to 131.0°F (-10.0 to 55.0°C) |
Electrical specifications
Voltage | 12 to 24 V DC |
Feature specifications
Ground line voltage sensor | Detects POS or NEG DC as well as AC voltage |
Ground fault HI indicator | Alarms when connection exceeds 5 Ohms |
Radio frequency (RF) detection | Covers AM frequency from 1 MHz to 900 MHz |
Audio alert | The ground fault and RF detectors have built in audio alarms |
Alarm test | Tests the alarm logic and siren circuits |
Alarm indicators | Continuously shows the state of alarm |
Power | Switches and fuses are on front of panel for access |
