TorkRunner™ Mechanical Casing Running Tool
Provides safer, more efficient casing installation and drilling operations
Applications
- Drilling operations
- Cementing operations
Features and Benefits
- The mechanical casing running tool (CRT) is designed to make up and break out casing connections, and reciprocate, rotate, fill-up/circulate and cement casing strings
- The CRT is controlled by the driller, reducing the need for dedicated personnel and auxiliary equipment on the rig floor
- Tool operation only requires top drive rotation and minimal sit-down force to activate/deactivate slips
- Slip-set technology reduces the sit-down force required to initially grip the pipe with the slips
- Rig-up and rig-down can be completed within minutes, increasing overall efficiency
- Visual indicators provide a clear signal of the status of the tool at all times, including the slips and latching mechanisms
- Compact size of the tool allows it to be used on smaller land rings where spacing is critical
Tool Description
The Weatherford TorkRunner mechanical CRT provides a casing running and drilling solution for loads up to 360 tons and torque up to 68,000 ft-lbf. The compact design is critical to facilitate easy transport, rig-up, rig-down, and overall handling. The slip-set technology allows easy and reliable grip of pipes without high sit-down forces. Visual indicators around the tool always provide a clear signal of the gripped or ungripped status eliminating dropped strings.
Specifications
Pipe size range | 6-5/8 to 20 in. (168.4 to 508 mm) |
Load rating | 360 tons (720,000 lbf) |
Torque rating | Slim Cage: 35,000 ft-lbf |
Push down force | 100 tons (200,000 lbf) |
Connection | 6-5/8 in. API REG (others by request) |
Design standard | API 8C PSL2 |
Maximum rotating speed | Unlimited |
Maximum flow | 660 gal/min (2.5 m3/min) |
Maximum circulating pressure | 5,000 psi (344 bar) |
Maximum mud temperature | 194°F (90°C) |
Base tool weight | 915 lb (415 kg) |
Base tool length | 54.2 in. (1,377 mm) |
Base tool diameter | 16.5 in. (420 mm) |
Diametrical stroke | 0.61 in. (15.5 mm) |
Mandrel ID | 1.50 in. (38.1 mm) |
Turns for maximum stroke | 0.8 |
Minimum design temperature | -4°F (-20°C) |
Storage temperature range | -40 to 122°F (-40 to 50°C) |
Operational temperature range | -4 to 122°F (-20 to 50°C) |
Die Chart
Slip Cage Design | Max Torque (ft-lbf) | Nominal Pipe Size (in.) | Min Pipe ID (in.) | Min Pipe Weight (ppf) | Max Pipe ID (in.) | Max Pipe Weight (ppf) |
Slim | 35,000 | 6.625 | 5.780 | 24 | 5.908 | 28 |
Medium | 50,000 | 6.625 | 6.034 | 20 | 6.034 | 20 |
Slim | 35,000 | 7.000 | 5.747 | 38 | 5.898 | 42.7 |
Medium | 50,000 | 7.000 | 5.992 | 17 | 6.530 | 35 |
HD | 68,000 | 7.000 | 6.356 | 17 | 6.530 | 23 |
Medium | 50,000 | 7.625 | 6.120 | 24 | 7.011 | 55.3 |
HD | 68,000 | 7.625 | 6.365 | 24 | 7.011 | 47.1 |
HD | 68,000 | 7.750 | 6.543 | 46.1 | 6.543 | 46.1 |
HD | 68,000 | 8.625 | 7.995 | 24 | 8.088 | 28 |
HD | 68,000 | 8.625 | 7.900 | 24 | 8.088 | 32 |
HD | 68,000 | 8.625 | 7.805 | 28 | 7.995 | 36 |
HD | 68,000 | 9.625 | 8.898 | 32.3 | 8.975 | 36 |
HD | 68,000 | 9.625 | 8.813 | 36 | 8.898 | 40 |
HD | 68,000 | 9.625 | 8.739 | 40 | 8.813 | 43.5 |
HD | 68,000 | 9.625 | 8.663 | 43.5 | 8.739 | 47 |
HD | 68,000 | 9.625 | 8.522 | 53.5 | 8.522 | 53.5 |
HD | 68,000 | 9.625 | 8.145 | 70.3 | 8.145 | 70.3 |
HD | 68,000 | 10.750 | 10.020 | 32.8 | 10.163 | 40.5 |
HD | 68,000 | 10.750 | 9.927 | 40.5 | 10.020 | 45.5 |
HD | 68,000 | 10.750 | 9.822 | 45.5 | 9.927 | 51 |
HD | 68,000 | 10.750 | 9.636 | 55.5 | 9.736 | 60.7 |
HD | 68,000 | 10.750 | 9.538 | 60.7 | 9.636 | 65.7 |
HD | 68,000 | 11.750 | 10.976 | 42 | 11.061 | 47 |
HD | 68,000 | 11.750 | 10.856 | 47 | 10.976 | 54 |
HD | 68,000 | 11.750 | 10.752 | 54 | 10.856 | 60 |
HD | 68,000 | 12.750 | 11.963 | 47.1 | 12.039 | 52 |
HD | 68,000 | 12.750 | 11.862 | 50 | 11.994 | 58.4 |
HD | 68,000 | 13.375 | 12.686 | 48 | 12.686 | 48 |
HD | 68,000 | 13.375 | 12.590 | 48 | 12.686 | 54.5 |
HD | 68,000 | 13.375 | 12.493 | 61 | 12.493 | 61 |
HD | 68,000 | 13.375 | 12.327 | 68 | 12.387 | 72 |
HD | 68,000 | 15.000 | 13.798 | 92.5 | 13.798 | 92.5 |
HD | 68,000 | 16.000 | 15.221 | 65 | 15.221 | 65 |
HD | 68,000 | 16.000 | 15.098 | 75 | 15.098 | 75 |
HD | 68,000 | 16.000 | 14.986 | 84 | 14.986 | 84 |
HD | 68,000 | 16.000 | 14.670 | 109 | 14.670 | 109 |
HD | 68,000 | 16.770 | 15.936 | 69.4 | 15.977 | 72.9 |
HD | 68,000 | 16.770 | 15.888 | 77 | 15.888 | 77 |
HD | 68,000 | 18.625 | 17.724 | 87.5 | 17.724 | 87.5 |
HD | 68,000 | 18.625 | 17.616 | 97.7 | 17.616 | 97.7 |
HD | 68,000 | 18.625 | 17.528 | 106 | 17.528 | 106 |
HD | 68,000 | 18.625 | 17.474 | 111 | 17.474 | 111 |
HD | 68,000 | 18.625 | 17.432 | 115 | 17.432 | 115 |
HD | 68,000 | 20.000 | 19.100 | 94 | 19.100 | 94 |
HD | 68,000 | 20.000 | 18.933 | 111 | 18.933 | 111 |
Slip Cages

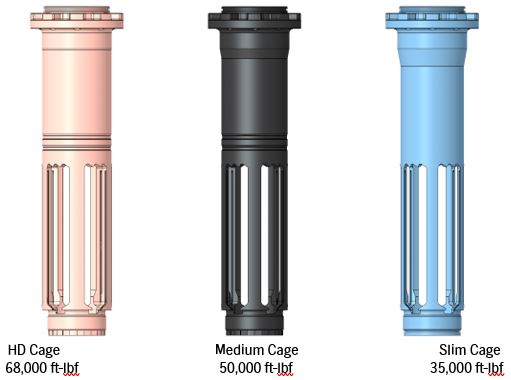

The Weatherford TorkRunner mechanical CRT can be used with 3 slip cages depending on the pipe size and torque requirements.
.jpg)

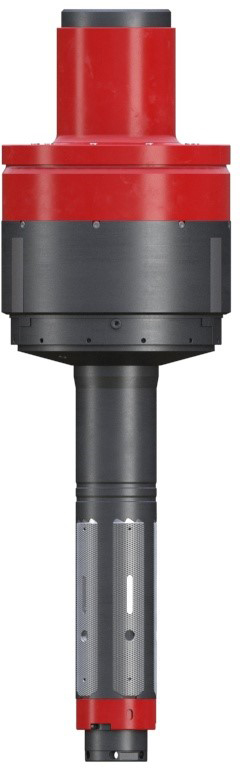

The compact design of the TorkRunner mechanical CRT allows for easy rig-up, rig-down, and handling.
