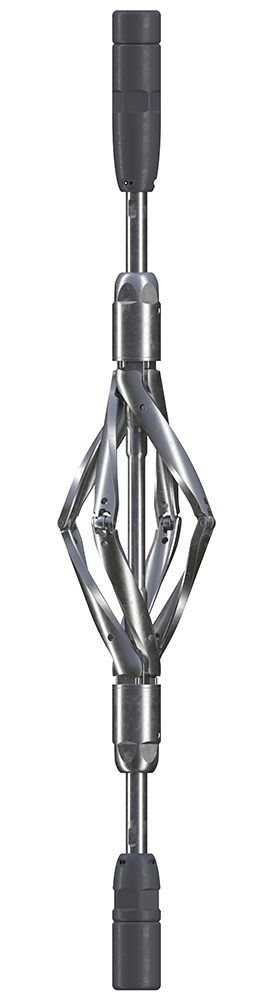

HELICAL 4-ARM ROLLER CENTRALIZER
Provides linear centralizing force across entire operating range for optimum centralization
Applications
- Production logging flow and injection profiling
Features and Benefits
- Centralization of logging tools at any well deviation
- Reduction of drag/friction during well entry
- Low component count and common parts reducing spares inventory
- Can be supplied with sucker rod connections for slickline runs
- Can be supplied with customer-specified connections
Tool Description
The Weatherford helical 4-arm roller centralizer provides a constant force across its opening range providing excellent centralization in vertical, deviated, or horizontal wells. Operating effectively in tubing or casing up to 9-5/8 in. or 13-3/8 in., the centralizer has been designed to place the rollers precisely where they need to be.
The centralizer boasts reduced component count using common parts, reducing inventory and cost.
Tungsten carbide rollers with replaceable bushes are used and provide an extremely long service life, and the tool is fitted with Elgiloy springs as standard.
The standard tool can be supplied with GO or GOI connections.
Specifications
Outside diameter | 1.69 in. (43 mm) | 2.125 in. (54 mm) |
Weight | 10.3 lb (4.7 kg) | 24.9 lb (11.3 kg) |
Length | 30.32 in. (770 mm) | 39.5 in. (1,003 mm) |
Maximum operating diameter | 9.63 in. (244 mm) | 13.37 in. (339 mm) |
Maximum temperature | 350°F (177°C) | 350°F (177°C) |
Maximum pressure | 15,000 psi (103.4 MPa) | 15,000 psi (103.4 MPa) |
