Single-Run Completion, Cementing System Delivers Efficiency and Reliability in Challenging Horizontal Middle East Well

Complete a complex well with approximately 7,080 ft (2,157 m) of an openhole horizontal section.
Deploy an integrated completion system combining inflow control device (ICD) screens, mechanical openhole packers, liner hanger, stage tool, hydraulic openhole packers, and landing collar for off-bottom cementing.
Execute a five-stage operation to optimize well performance.

Weatherford reviewed well data and customer objectives and designed and engineered an integrated single-run solution that combined the lower completion system (ICD screens and mechanical packers) with the off-bottom cementing kit (liner hanger, stage tool, hydraulic packers, landing collar) for safe deployment through 7,080 ft (2,157 m) of openhole while maintaining integrity and efficiency.
Conducted extensive planning and surface integration checks to validate tool compatibility across the long openhole section, minimized operational risks, and confirmed readiness for multi-stage tasks, including hanger and packer setting, cement placement, and drift confirmation.
Verified each tool’s integrity and functionality on location prior to deployment, ensuring full readiness for downhole operations.
Collaborated closely with third-party providers to integrate cementing, milling, and shifting activities, enabling reliable system installation and positioning the well for long-term production success.

Optimized efficiency: Combined the lower completion and off-bottom cementing systems into a single bottomhole assembly (BHA), eliminating the need for two separate runs. This integration saved approximately one full day of rig time and streamlined operations to total depth (TD).
Single-provider advantage: Delivering a complete system minimized personnel on board, reduced operational risks, and avoided complications typically associated with mixing multiple providers.
Trusted technology: Leveraging field-proven openhole isolation packers, with an excellent run history in the operator’s wells, reinforced reliability and strengthened operator confidence.

Details

Location

Middle East

Well Type

Oil producers

Formation

Sandstone

Hole Size and Angle

6-1/8 in., 90°

Casing Size

7 in.

Measured Depth

13,926 ft (4,244 m)

Product and Services

Area of interest

First Name

Last Name

Phone

Email

Company

Country

Region

Message

Marketing

Tick to subscribe Weatherford newsletter

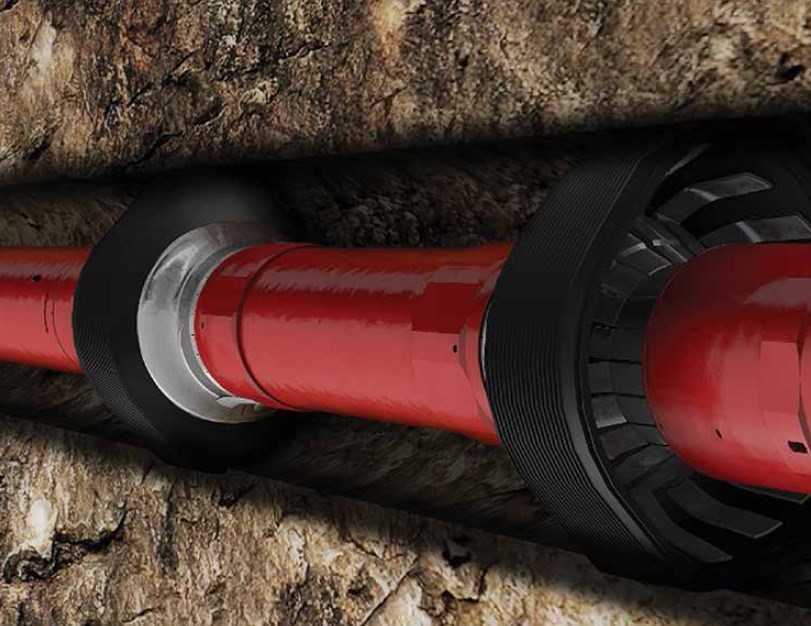

Single-Run Completion, Cementing System
