HyperLine™ Motor, MWD Technology Drill 6-Leg Multilateral in 1 Run, Set New Record in Distance Drilled in 12-hr Shift, Improve ROP Efficiency

Drill multilateral legs in the Clearwater formation, including openhole sidetracks, using a dual-telemetry MWD system.

The combination of the EMx dual-telemetry MWD tool and the HyperLine drilling motor enabled the operator to drill a 6-leg multilateral well in a single run. Selected for its capability to drill directionally in multilayer formations, the HyperLine motor doubles the operating torque and power output of standard motors.

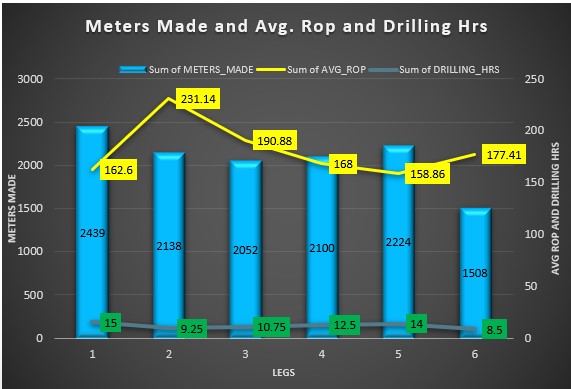

The 12-hour operation set a new standard in distance drilled: 1,594 m (5,229 ft).
All legs were complete in EM without the need to use the pulse telemetry in dual mode. All the drilled legs relied on the WellPlaced Survey Management (IFR2+MSA+SAG) technology.
The single-lateral bottomhole assembly drilled 12,461 m (40,882 ft) in just 70 drilling hours using the HyperLine motor.
The directional team maintained the trajectory within the specific target, achieving an average rate of penetration (ROP) of 231.4 m (759 ft) per hour over the 12-hour shift.

The Weatherford solution enabled the operator to maintain the drilling according to the well plan.
The drilling technology increased the ROP over other drilling tools from earlier jobs.

Details

Location

Canada

Well Type

Multilateral

Formation

Clearwater

Length Drilled

12,461 m (40,882 ft)

Average ROP Rotation

181.5 m/hr (595.4 ft/hr)

Average % Slide

7.23%

Motor Hours

112.25

Drilling Hours

70

Below Rotary

165 hr
