Real Results

Performance By The Numbers

Compact™ Array Induction, Gamma Ray Tools

Successfully Log Multiple Wells Through Fiberglass Casing, Resolve Earlier Data Uncertainty

Objectives

  • Acquire induction resistivity data through fiberglass casing in three wells to monitor and determine the current oil-water contacts.

Our Approach

  • After collaboration with the operator about the project, Weatherford personnel deployed the induction resistivity-gamma ray tool (MAI-GR) for the evaluation of all the three wells.
  • The induction tool measured the changes in formation resistivity while the gamma ray measurements aided in formation correlation.

Value to Customer

  • The data acquired by Weatherford showed a strong correlation with previously recorded openhole data.
  • The operator successfully achieved time-lapse monitoring of the current oil-water contact across the three wells.
  • Data uncertainty caused by erratic readings in the competitor’s earlier logs were resolved following the Weatherford logging operations.

Learn More

Wireline Services

Wireline Products

Print Version
Details

Location

Kuwait

Well Type

Observation

Formation

Clastic

Hole Size

6-5/8 in., fiberglass

Depth

4,920 ft (1,499 m)

Products/Services

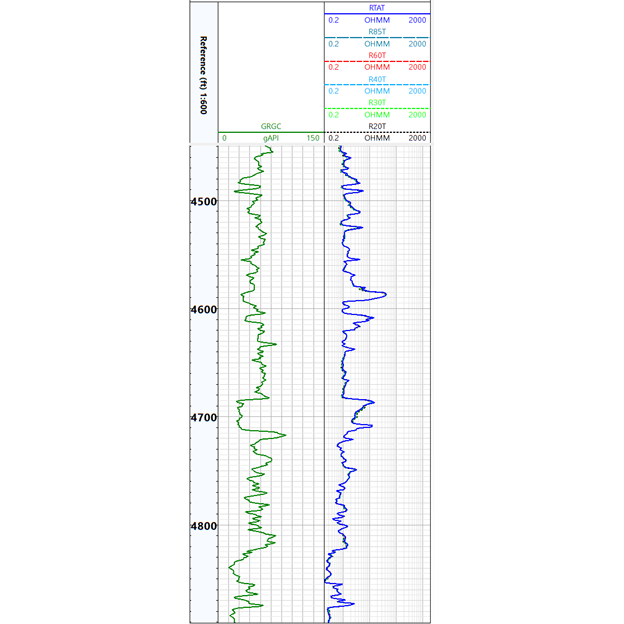

Gamma ray-resistivity log acquired through fiberglass casing.
