Real Results

Performance By The Numbers

Stay Ahead of Risk

Fiber Optic Monitoring Pinpoints Well Leaks Without Operational Disruption

Objectives

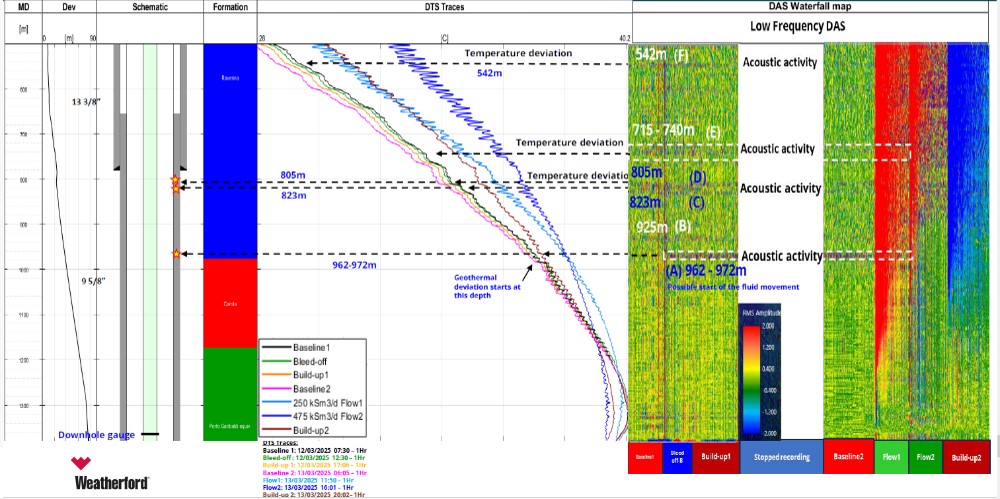

  • Acquire temperature anomalies and acoustic activities along the wellbore to detect potential leaks in the B annulus using distributed temperature sensing (DTS) and distributed acoustic sensing (DAS) technologies.

Our Approach

  • The B annulus was showing pressure increasing over the time and, since the fiber was already installed (October 2022), Weatherford experts recommended applying the DTS and DAS technology.
  • This non-intrusive solution required no additional wireline tools or site preparation and would not incur any downtime.

Value to Customer

  • The comprehensive insights delivered both qualitative and quantitative data on fluid dynamics, enabling accurate characterization of failure patterns in the well completion.
  • The analysis clearly located the well-integrity issue and confirmed flow behind the casing.
  • This approach not only resolved the immediate concern but also demonstrated the long-term value of permanent fiber optic installations for proactive well surveillance.

Learn More

Reservoir Monitoring

Print Version
Details

Location

Italy

Well Type

Gas storage

Formation

Turbiditic sandy levels

Casing Size

13-3/8 in. up to 2,559 ft (780 m)
9-5/8 in. up to 4,977 ft (1,517 m)

Temperature

104°F (40°C)

Depth

4,520 ft (1,378 m)

Products/Services

Fiber Optic Monitoring
