Precise Placement Through Multiple Faults Record Lateral Demonstrates Magnus<sup>®</sup> Saker RSS Reliability in Challenging Carbonates

Drill a 6-in. horizontal maximum reservoir contact (MRC) section at 9,937 ft (3,028 m) MD to target the Shuaiba formation.
Navigate a structurally complex reservoir with multiple faults while minimizing risk of sticking or lost in hole (LIH).
Maintain low dogleg severity (DLS) to ensure safe deployment of the MRC-limited entry liner (MRC‑LEL) lower completion.
Achieve or exceed ROP targets without compromising placement or hole quality.

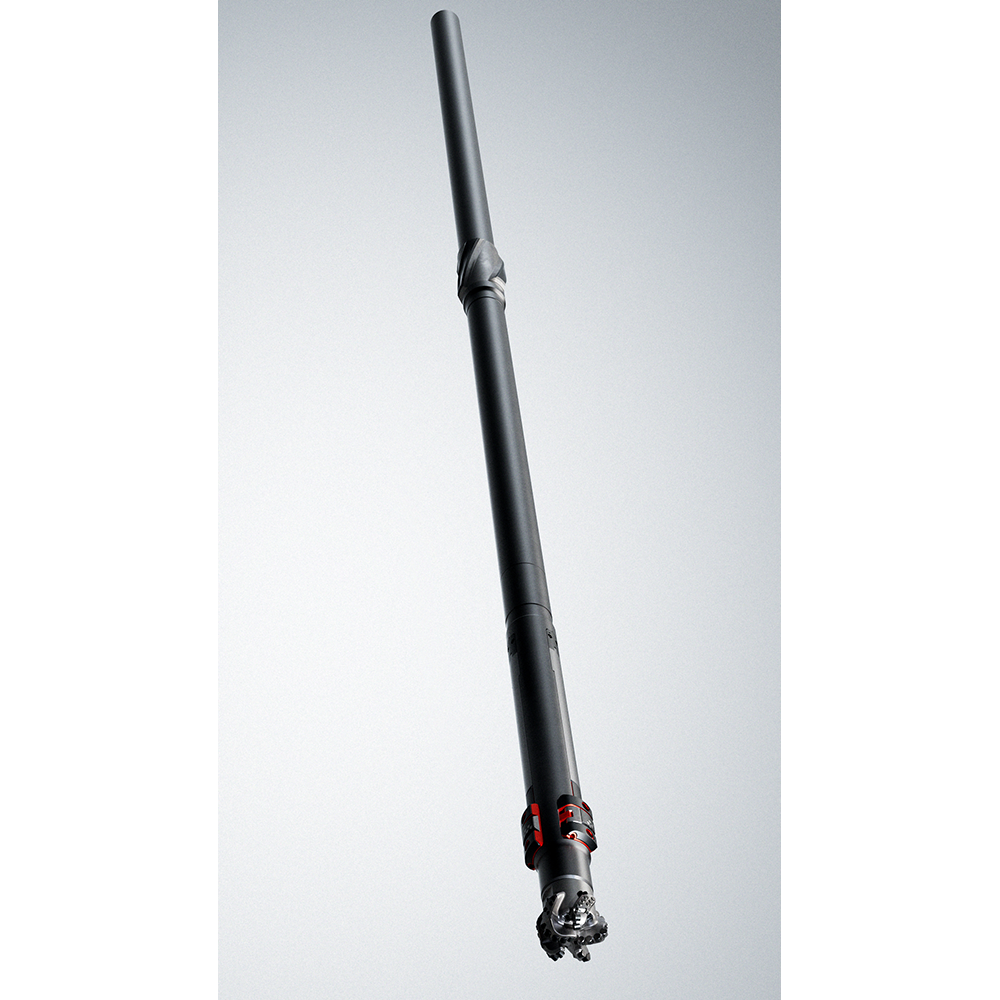

Deployed the Magnus Saker rotary steerable system (RSS) for high–torque steering, fast directional response, and smooth wellbore delivery in high-strength carbonates.
The Magnus Saker RSS provided high-precision directional control with low DLS (< 1°/100 ft (30 m)) while maintaining a high ROP performance.
Relied on the quad-combo LWD (gamma ray, resistivity, density, neutron, and density image) from the landing point to TD to enable accurate real-time geosteering.
The SineWave™ microimager delivered high-resolution borehole images to support fault interpretation and lower completion optimization.
The integrated drilling–geosteering workflow balanced high ROP with trajectory smoothness.

The Magnus Saker RSS enabled the operator to achieve 100% well‑placement accuracy within the target zone while successfully navigating three faults between landing and total depth.
An average ROP of 79.2 ft/hr (24.1 m/hr)—10% above the target—was delivered on what became the longest lateral run to date for the Magnus Saker RSS.
The low-tortuosity wellbore enabled smooth deployment of the MRC-LEL lower completion.
SineWave microimager data improved confidence across faulted intervals and supported a more optimized completion design.
The entire operation—including drilling, MPD, and LWD—was completed with zero nonproductive time (NPT).

Details

Location

Middle East

Well Type

Onshore, development, injector, horizontal

Formation

Carbonates

Hole Size

6 in.

Lateral Length

9,937 ft (3,028 m) MD
